一、用途
用于各類農作物實粒種子（谷粒、玉米、小麥、油菜籽等）的精確考種，各類糧庫的蟲口計數分析。可兼做表面光滑的昆蟲計數或蟲卵計數（如：米象、蚜蟲、蠶卵、魚籽等），以及被當作種子凈度工作臺用于種子凈度檢驗。
二、主要技術指標
1、大景深的1400萬像素彩色拍攝儀及A3幅面超薄背光燈板，具有相機畫面畸變、背光板均勻性的自動矯正特性，有效減小尺寸測量誤差。
2、★能大批量自動分析成像后的種粒圖片。拍照分析的種粒直徑1.0～20mm。稻種的實粒與秕谷需經風選，再分別計數分析。
3、★全自動數粒速度1200～20000粒/分鐘，數粒誤差≤±0.1～0.4%，極少監視修正即達100%正確。全自動千粒重分析的精度誤差≤±0.5%。對于直徑較小的種粒（如油菜籽、蔬菜籽），單批次考種數量在5000～10000粒。
4、★可根據實際需求自行創制一鍵自動分析向?qū)?/span>，適用于水稻、小麥、玉米、豆類、油菜籽、瓜子、蔬菜籽等各類農作物的自動精確考種、各類糧庫的蟲口自動計數，以及出苗數分析，顯示和輸出計數結果。

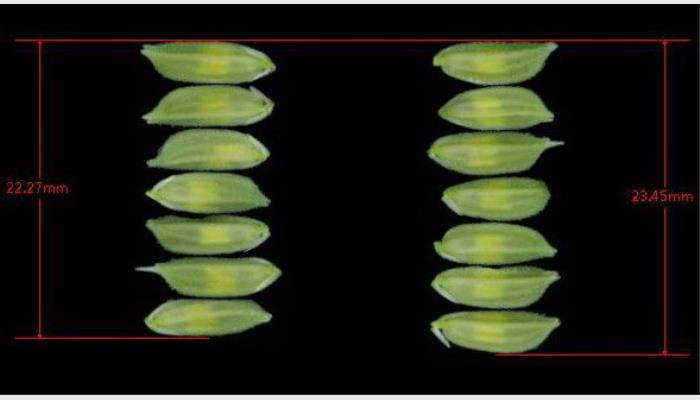

5、★能自動測出各類粘連種粒的每粒粒形參數（長、寬、長寬比、面積、等效直徑、周長等），能精準顯示種粒外接矩形，并可自動排序輸出，及可輸出粒徑分布圖表。
6、★具有對被分析目標顏色、形狀進行自學習和再學習，并實現自動分類的特性，以及品種比對特性。
7、分析過程為全程電腦控制，高效、準確、簡便易用，真正一鍵式操作，鼠標一點，結果即現。具有被測樣本條碼、電子天平RS232重量數據的自動輸入接口。

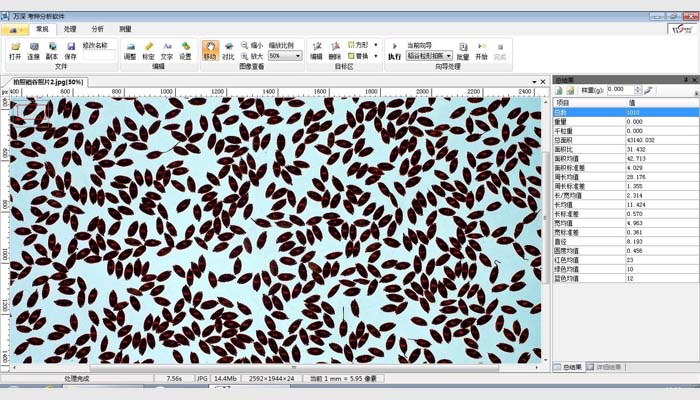

8、可用鼠標選擇增加/刪除，或直接用鼠標在屏上手工計數，以確保100%正確目標區的個性化計數，也可對工作區視野中任選范圍或矩形范圍內的計數。
9、分析圖像結果可保存，能自動形成總報表，統計分析結果可輸出保存至Excel表。
，以及按寬度、長度、面積等輸出的排列圖和測量圖。
10、儀器有云平臺支持，可將分析數據保存到云端隨時隨地查看。
三、標準配置
1、SC-G自動考種分析及千粒重儀系統軟件U盤及軟件鎖1套
2、大景深的1400萬像素彩色拍攝儀1臺
3、A3幅面超薄背光燈板1套
4、帶RS232通訊接口的量程220g電子天平（精度1mg）1臺
5、RS232接口通訊傳輸線1條
6、種粒成像盤1個
7、種粒收納小盤1個
備注：
1、本產品需使用電腦，推薦：品牌電腦（12代酷睿i5 CPU/16G內存/512G硬盤/無線網卡,3個以上USB口，Windows 10完整專業版或旗艦版）。
2、可選配發芽率成像支架、1400萬像素彩色相機、鏡頭套件等1套，用于做發芽率、均勻度分析。
3、可選配種粒厚度定位板、水分測定儀、掃描儀。
SC-G automatic seeds test and thousand kernels weighter
1. Purpose:
It is used for the accurate seed examination of solid seeds of various crops (grain, corn, wheat, rapeseed, etc.), and the insect population count analysis of various grain banks. It can be doubled as a smooth surface insect count or egg count (e.g. rice elephants, aphids, silkworm eggs, fish roe, etc.), and is used as a seed clarity workbench for seed clarity testing.
2. Main technical indicators:
1). The 14 million pixel color camera with large depth of field and the A3 format ultra-thin backlight light panel have the automatic correction characteristics of camera picture distortion and backlight plate uniformity, effectively reducing the size measurement error.
2). It can automatically analyze the image of the imprinted seed grain in large quantities. The diameter of the seed grain analyzed by photograph is 1.0~20mm. The grains and grains of rice seeds need to be selected by winnowing and then counted and analyzed separately.
3). It has the characteristics of self-learning and enhanced learning of automatic classification of seed color and shape, and the characteristics of realizing the comparison of variety differences.
4). According to actual needs, we can create a one-click automatic analysis wizard, which can automatically and accurately test the seeds of rice, wheat, corn, beans, rapeseed, melon seeds, vegetable seeds and other crops, automatically count the insect populations of various grain warehouses, and analyze the number and uniformity of seedlings, display and output counting results.
5). It can automatically measure the shape parameters of each grain (length, width, aspect ratio, area, equivalent diameter, perimeter, etc.) of various adhesion seed grains, accurately display the seed grain outer rectangle, and automatically sort the output, and output the particle size distribution chart.
6). Automatic grain counting speed 1200~20000 grains / minute, several grain error ≤± 0.1~0.4%, very little monitoring and correction to achieve 100% correct. The accuracy error of fully automated 1000-grain weight analysis ≤± 0.5%. For seeds with small diameter (such as rapeseed and vegetable seeds), the number of seeds in a single batch is 5000~10000.
7). The analysis process is computer-controlled, efficient, accurate, simple and easy to use, truly one-click operation, one mouse click, the result is real. It has an automatic input interface for the barcode of the sample to be measured and the weight data of the electronic balance RS232.
8). Increase/delete can be selected with the mouse, or manually counted directly on the screen with the mouse to ensure 100% correct personalized counting of target areas, as well as counting within any range or rectangle in the field of view of the workspace.
9). The analysis image results can be saved, and a total report can be automatically formed, and the statistical analysis results can be output and saved to an Excel table, as well as arrangement and measurement charts output by width, length, area, etc.
3. Standard configuration:
1). SC-G automatic test analysis and thousand grain weight meter system software U disk and software lock, 1 set
2). 14 million pixel color camera with large depth of field, 1 set
3). A3 format ultra-thin backlight panel, 1 set
4). 220g electronic balance with RS232 communication interface (accuracy 1mg), 1 set
5). RS232 interface communication transmission line, 1 line
6). seed imaging disk, 1 pc
7). small plate for seed grains, 1 pc
Note：
This product requires the use of computer, recommended: brand computer (13th generation Core i5 CPU/8G memory/512G hard disk/wireless card, 1 x USB3.0 + 3 x USB2.0 ports, Windows 10 or 11 Full Pro).
